lin spike / lin spike connect

A minimalist bar-shaped luminaire defined by its distinctive louvre design, delivering glare-free, downward-facing light. Designed for landscape applications, it is ideal for illuminating outdoor environments. The spike version allows easy installation into unpaved ground, while the connect version enables multiple luminaires to be linked together for a more efficient and scalable lighting layout. Availble in multiple finishes.

Brand: IP44.DE

  • ·SPECIFICATIONS
  • ·FEATURES
  • ·DIMENSIONS

·SPECIFICATIONS

  • Light Source: LED
  • Voltage: 230V
  • Lifetime: L70 / 50,000 h
  • Dimmable: Trailing edge dimmer
  • Colour Temperature: 2700K
  • IP Rating: IP65
  • Warranty: 5 years

·FEATURES

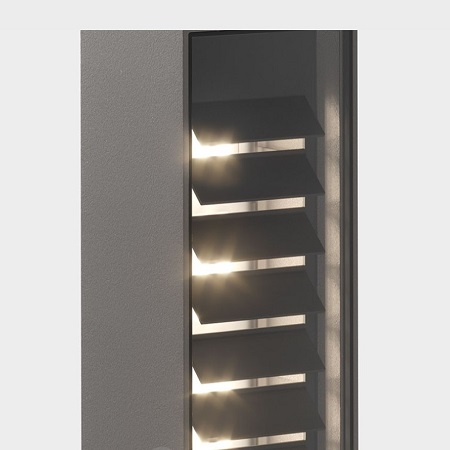

  • Minimalist bar-shaped design with integrated louvre structure
  • Glare-free downward light distribution
  • Aluminium die-cast body with safety glass and stainless steel spike
  • Installation options:
    • Lin Spike: Standalone luminaire with individual power connection
    • Lin Spike Connect: Can be linked with multiple luminaires using a connect system
  • Ideal usage:
    • Lin Spike: Designed for fixed installations with a planned layout and concealed underground cabling
    • Lin Spike Connect: Designed for flexible setups with plug-and-play connection and minimal installation planning
  • Available finishes:

  • Bug-friendly lighting





·DIMENSIONS

  Lin 40 spike Lin 40 spike connect
Height:
Width:
400mm
45mm
400mm
45mm

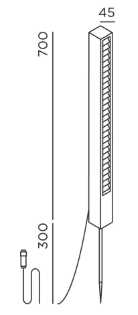

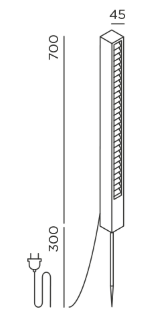

  Lin 70 spike Line 70 spike connect
Height:
Width:
700mm
45mm
700mm
45mm
